Generating wang tile sets with CLIP

Tile sets in computer games are images containing a number of graphics that fit together at certain edges. With these one can draw nice minimal game maps and backgrounds. It would be awesome to create those via text prompts, and i've been trying just long enough...

This is in the making since a couple of years. I played with the OpenAI CLIP model a lot and here's a few findings of how to create tilesets.

1. Use Robust CLIP

Robust CLIP: Unsupervised Adversarial Fine-Tuning of Vision Embeddings for Robust Large Vision-Language Models, Christian Schlarmann, Naman Deep Singh, Francesco Croce, Matthias Hein (arxiv:2402.12336)

(Thanks to realfolkcode for pointing me there!)

To recapitulate quickly: CLIP (Contrastive Language/Image Preprocessing) is a framework to train an image encoder and a text encoder to output a similar stream of numbers (an encoding) for similar images and/or texts, and, of course, a dissimilar stream of numbers for dissimilar images and/or texts. The stream of numbers as such is not that important. Important is, how close or far different encodings are.

A trained model can immediately be used to search for images using a text prompt or a reference image. But it can also be used to change an image (e.g. noise) to match a certain text prompt or other image. This does not create images in the quality of Stable Diffusion but, in comparison, the process is very easy to control. One can use any specific initial conditions, apply a few steps of CLIP prompt-matching, make some adjustments, apply some transformations and a few more CLIP steps. All in the actual image space. It's much like kneading.

The original OpenAI CLIP model was trained on 200 million image/text pairs, if i remember that right, which was never heard of at the time. They released the model code and the weights, because, i guess, they thought it can not be used for evil circumstances. However, the enormous dataset was kept closed but the paper explained pretty detailed, how it was created.

Soon after, LAION took the effort of creating similar datasets of image/text pairs and released it. The largest of it containg 5 billion image/text pairs! The Open CLIP project reimplemented the model and the training code and researchers with access to a cluster of expensive GPUS trained and released new models.

In the following, i use the Robust CLIP model chs20/FARE4-ViT-B-32-laion2B-s34B-b79K, released on huggingface. As the name suggests, it was initially trained on 2 billion LAION image/text pairs and then adversarially fine-tuned on the ImageNet dataset.

This fine-tuning makes the model much more usable to create images.

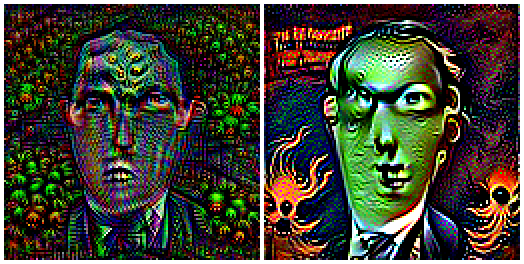

Compare these renderings, 1000 steps each, run on a simple gray head template, with prompt: "the face of h.p. lovecraft"

portrait lovecraft

OpenAI CLIP is left, Robust CLIP on the right. They both do not really look like a photo of Lovecraft and the usual CLIP generation issues, like duplicate mouths and such, are visible but robust CLIP produces much more pronounced renderings and less indefinite color gradients in general.

2. Know your tiling

You need to have a convenient way of a) defining a tilesets, b) rendering the tile templates and c) rendering random maps.

I certainly recommend this resource cr31.co.uk, which is now gone but fortunately mirrored at boristhebrave.com

There is ongoing research about optimal packings of larger tile sets. For the edge-and-corner-tiles shown below, i used a variant released by user caeles on opengameart.org

When B, BL, BR aso. are constants with exclusive bits, you can use this definition to represent the tileset:

EDGE_AND_CORNER_TILESET = [
    [B|BL|BR|L|R|T|TL|TR, B|BL|BR|L|T|TL|TR, BL|T|TL|TR, T|TL|TR, BR|T|TL|TR, BL|BR|R|T|TL|TR, B|BL|BR|L|R|T|TL|TR],
    [BL|BR|L|R|T|TL|TR, BL|BR|L|T|TL|TR, BL|BR|TL, BL, BR|R|TR, BL|BR|L|TL|TR, B|BL|BR|R|T|TL|TR],
    [BL|L|TL|TR, BR|TL|TR, BL|BR|TL|TR, B|BL|BR|TL, BL|TR, TL|TR, BR|R|T|TL|TR],
    [BL|L|TL, TR, BR|R|TL|TR, BL|L|T|TL|TR, TL, BR, BL|BR|R|TR],
    [BL|BR|L|TL, B|BL|BR, BL|BR|TR, BL|TL, 0, BR|TR, BL|BR|R|TL|TR],
    [B|BL|BR|L|TL|TR, BL|BR|T|TL|TR, BL|TL|TR, BR|TL, BL|BR, B|BL|BR|R|TR, BL|BR|L|R|TL|TR],
    [B|BL|BR|L|R|T|TL|TR, B|BL|BR|L|R|TL|TR, B|BL|BR|L|TL, B|BL|BR|TR, B|BL|BR|TL|TR, B|BL|BR|T|TL|TR, B|BL|BR|R|TL|TR],
]

To just run experiments without immediately falling back to using a painting application, let's have a little framework to render tile templates. They are useful for testing and as suggestions to the image generation pipeline.

Thanks to the articles by iQ, every graphics programmer knows about Signed Distance Functions (SDF). The implicit distance-based representation makes it easy to render smooth masks, boundaries or normal-maps for lighting. Just add some boxes and circles at the right places and each possible tile template can be rendered without much effort.

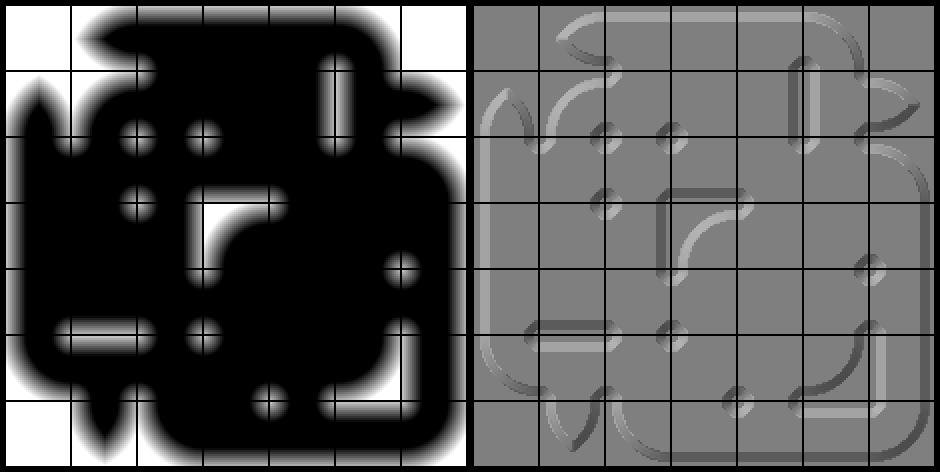

edge corner demo

A random map generator can compare the edges and corner settings of adjacent tiles, and generate endless, seemless random maps:

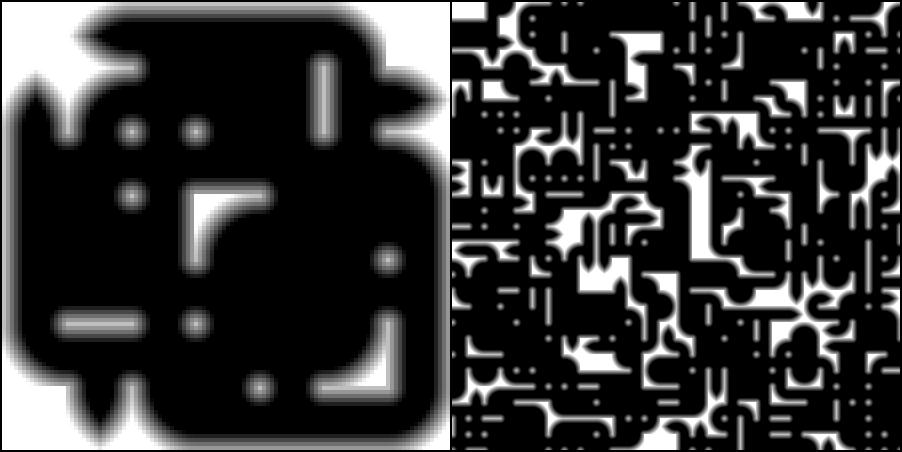

edge corner preview

edge corner ec 16x16px 7x7map

(The small image you can download and use as a tileset template. It's 7x7 tiles with 16x16 pixels each)

Playing with the objects used on the edges and corners creates quite versatile templates:

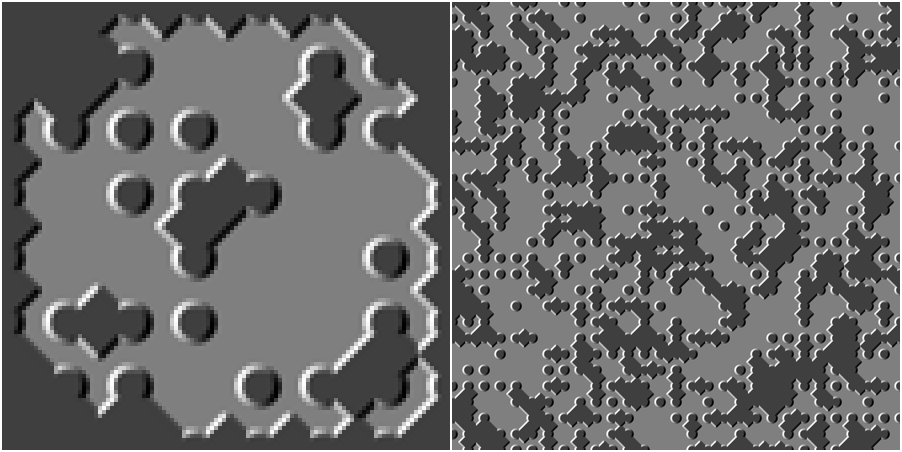

edge corner round preview

edge corner round ec 16x16px 7x7map

These endless random maps can then be fed into CLIP, and the gradient of the target error passes back to the tileset image.

I make this all look simple to boost your motivation. There are a couple of details that require fiddling with the values. You can read more about it here.

Starting from random noise with the prompt "rpg tile map", the algorithm yielded:

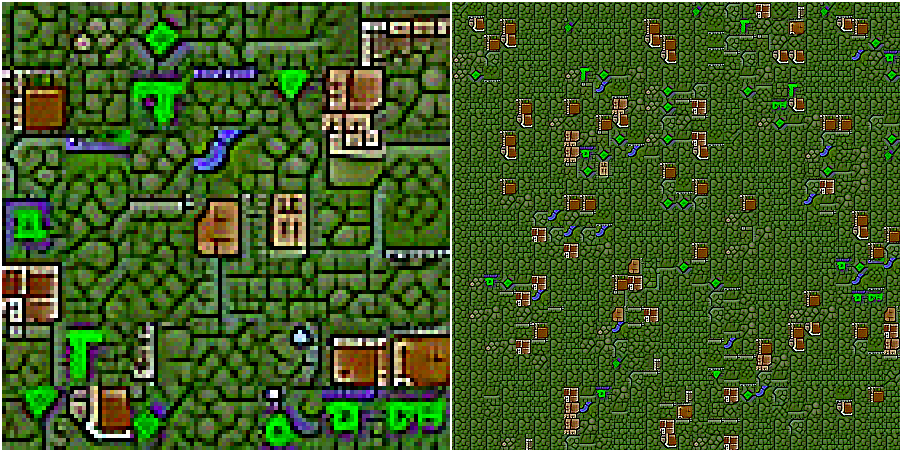

rpg tileset from noise preview

rpg tileset from noise ec 16x16px 7x7map

It's nice and smooth and tileable. But it's also pretty chaotic. Using the spiky lighting template from above as source creates a tileset that better follows the inside/outside logic of the tiling:

rpg tileset from template preview

rpg tileset from template ec 16x16px 7x7map

And to gain further control over the image generation, one can use a soft or hard mask to apply different prompts at the inside and outside of the tiling.

In this case "desert wasteland" and "top-down view of an ancient castle":

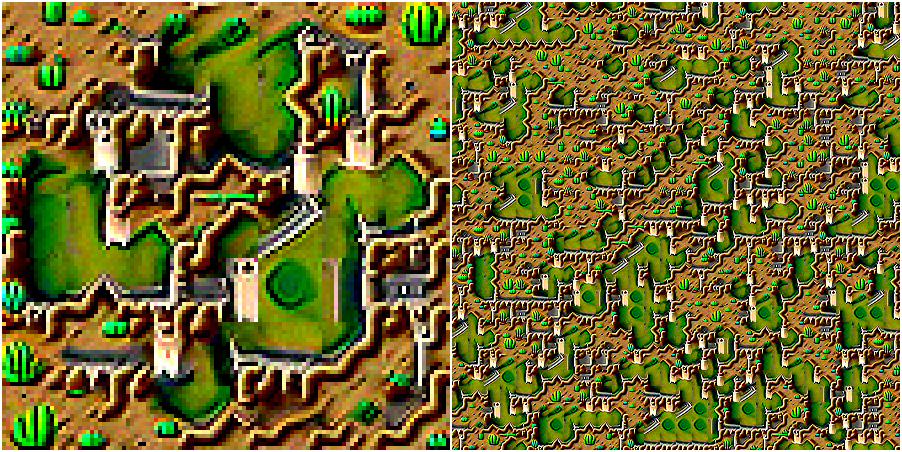

desert castle preview

desert castle ec 16x16px 7x7map

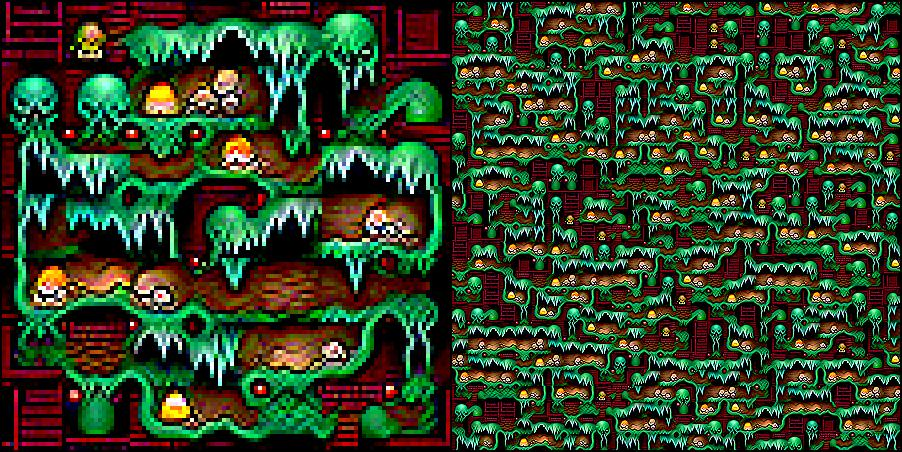

So, below are some cherry-picked generated tilesets for viewing pleasure. I experimented with different prompts, different masking strategies and different optimizers, learnrates, batch-sizes and transformations... There's a lot of parameters to tweak.

Cthulhu's labyrinth:

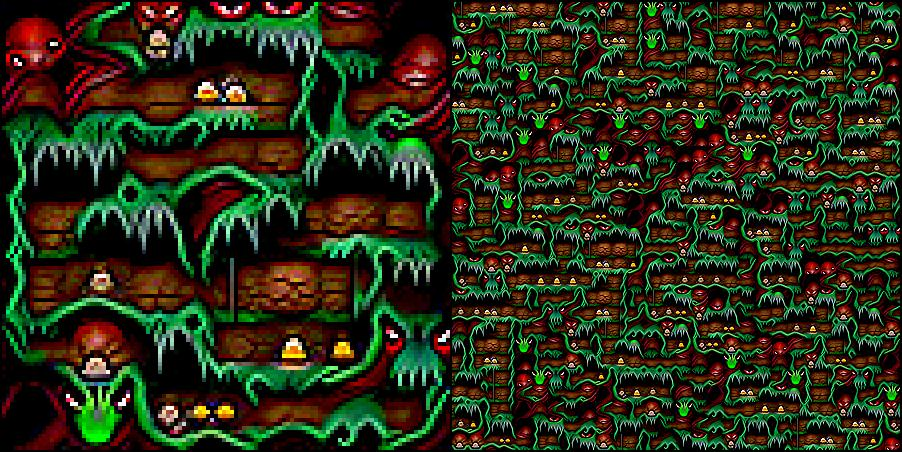

cthulhu labyrinth2 preview

cthulhu labyrinth2 ec 16x16px 7x7map

Cthulhu's dungeon:

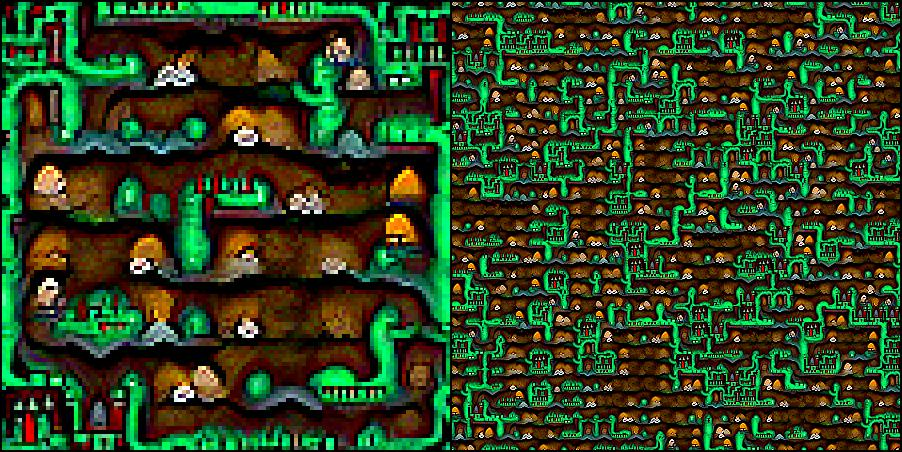

cthulhu dungeon preview

cthulhu dungeon ec 16x16px 7x7map

Cthulhu's oil platform:

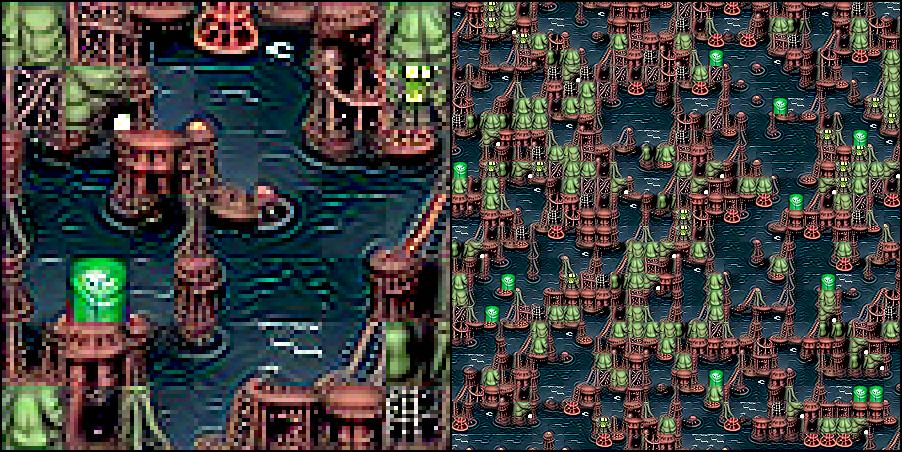

cthulhu labyrinth preview

cthulhu labyrinth ec 16x16px 7x7map

Cthulhu's funky temple:

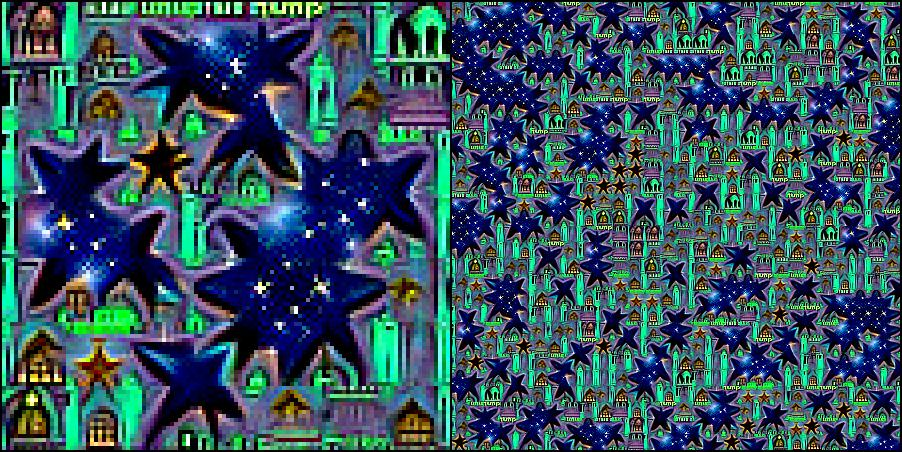

cthulhu funky temple preview

cthulhu funky temple ec 16x16px 7x7map

Forest and desert:

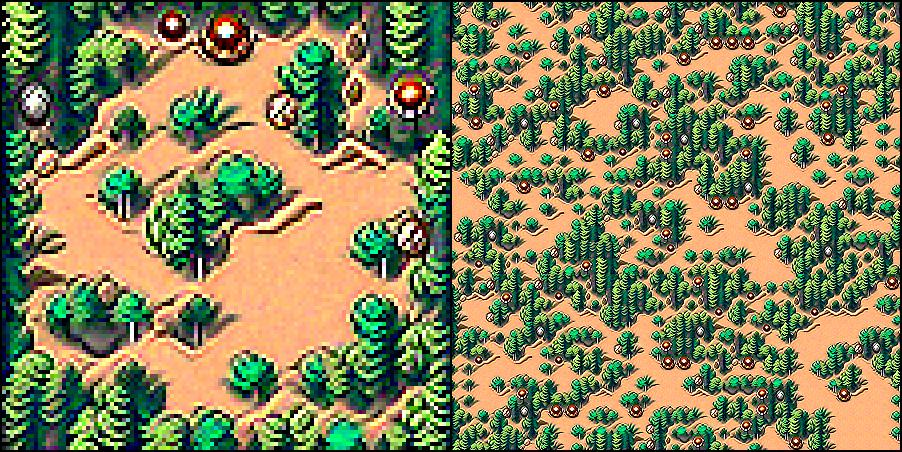

forest desert preview

forest desert ec 16x16px 7x7map

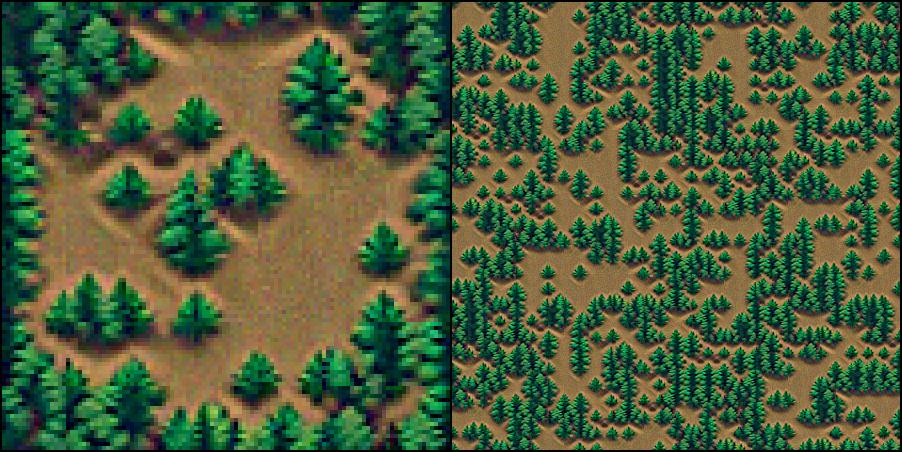

forest desert2 preview

forest desert2 ec 16x16px 7x7map

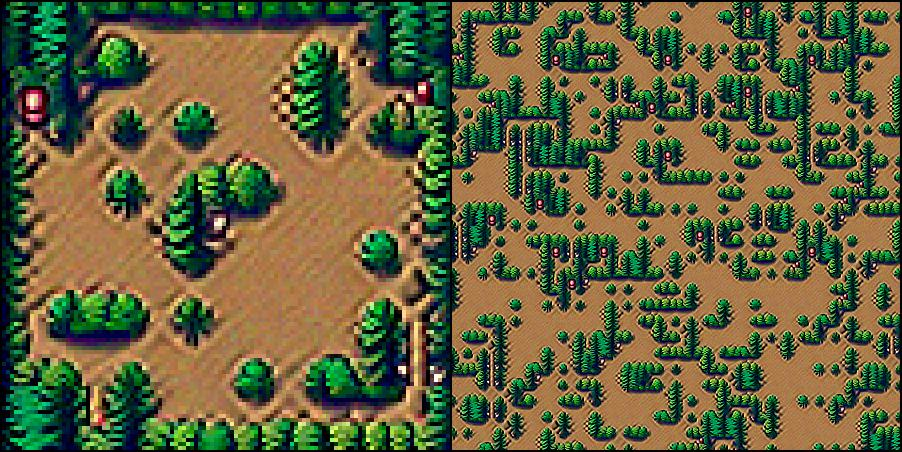

foreset desert3 preview

foreset desert3 ec 16x16px 7x7map

Jungle and sandy path:

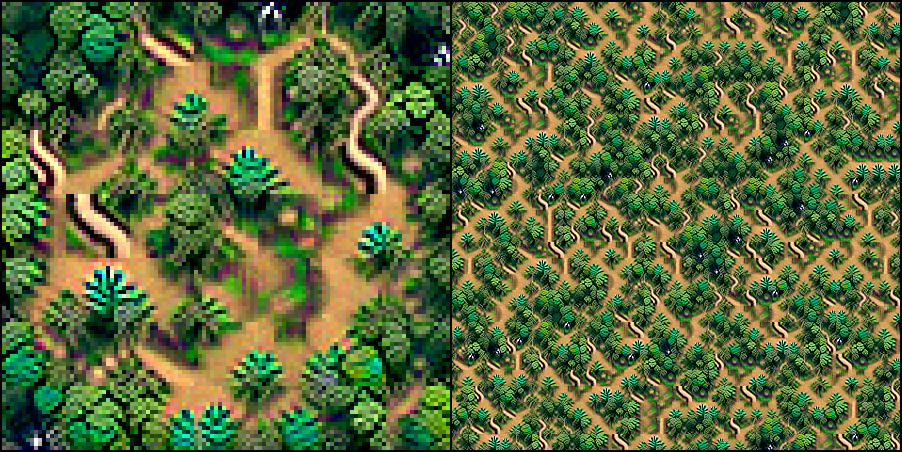

jungle path preview

jungle path ec 16x16px 7x7map

jungle path2 preview

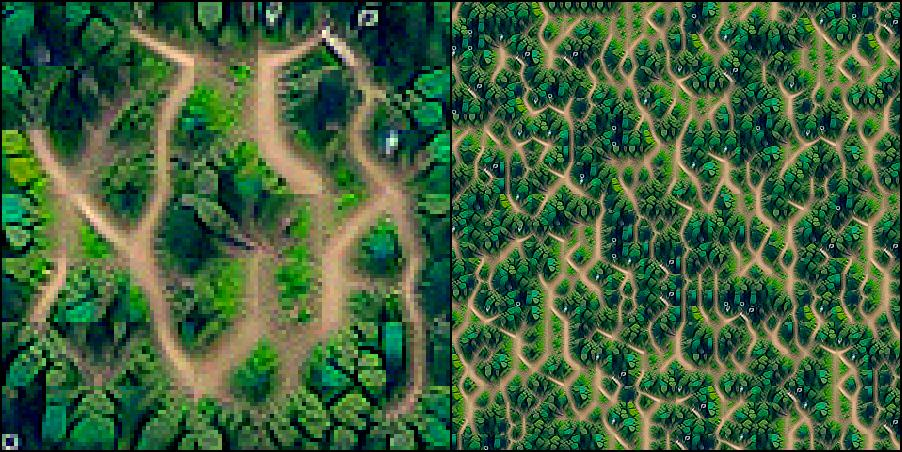

jungle path2 ec 16x16px 7x7map

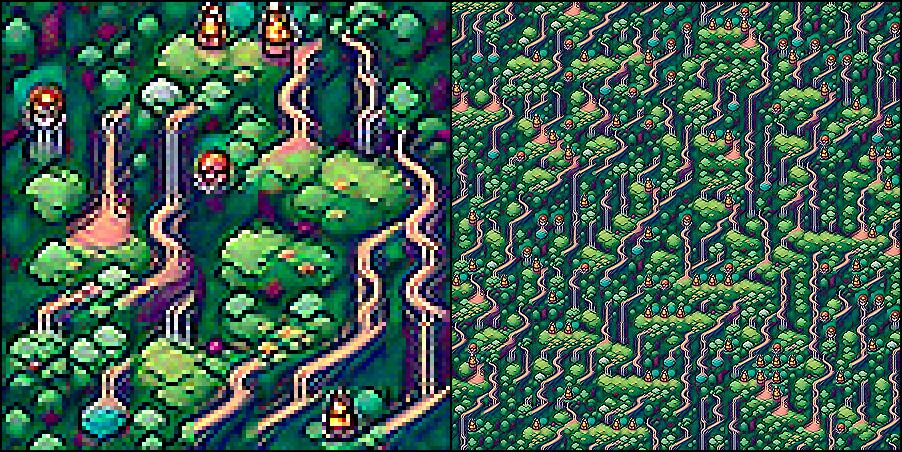

jungle path3 preview

jungle path3 ec 16x16px 7x7map

Dystopian city and wasteland:

city wasteland preview

city wasteland ec 16x16px 7x7map

city wasteland2 preview

city wasteland2 ec 16x16px 7x7map

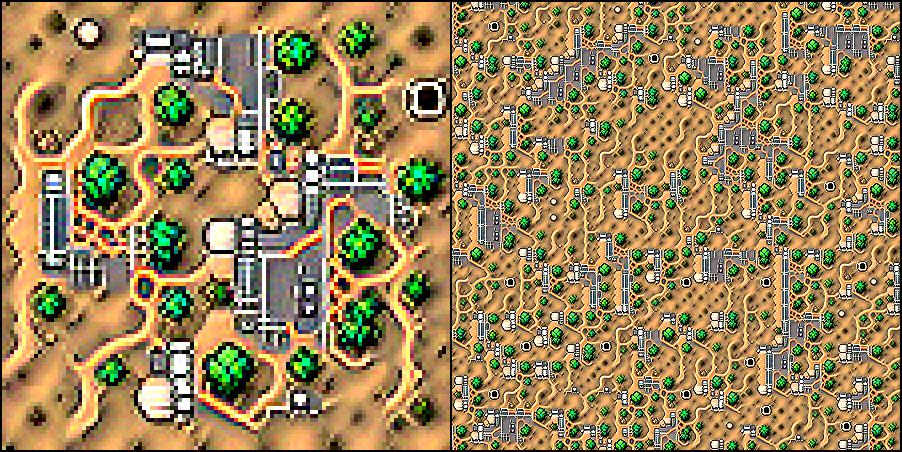

city wasteland3 preview

city wasteland3 ec 16x16px 7x7map

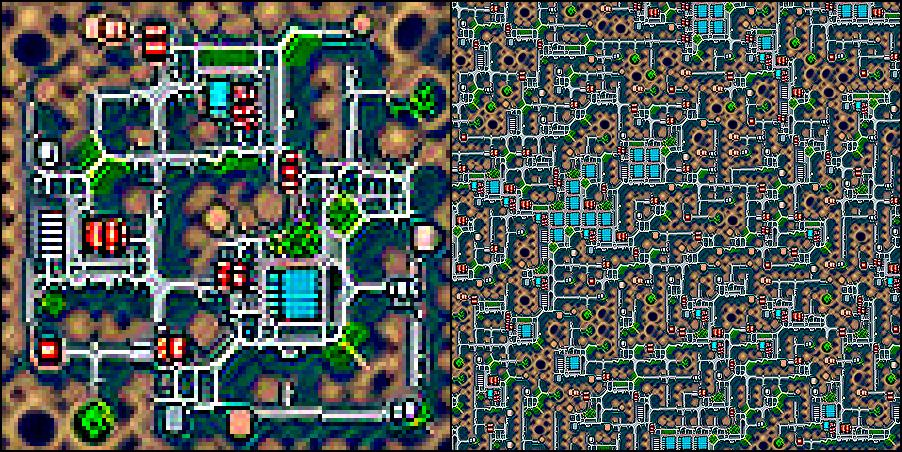

city wasteland4 preview

city wasteland4 ec 16x16px 7x7map

Here i spent some extra effort to render a nice template with the SDF functions, Mixing grass, dirt and water colors, adding some perlin noise and some nice lighting:

grass water template 16x16px 7x7map

Then using the prompts "grassy meadow, pixelart" and "wavy water, pixelart" for outside and inside:

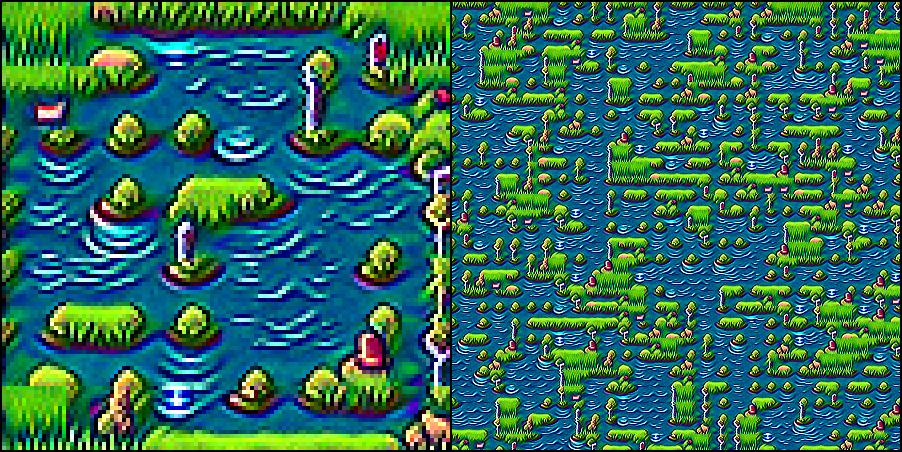

grass water preview

grass water ec 16x16px 7x7map

We can also use existing images as targets for CLIP. Here's one tileset that targets a famous printing by M.C. Escher:

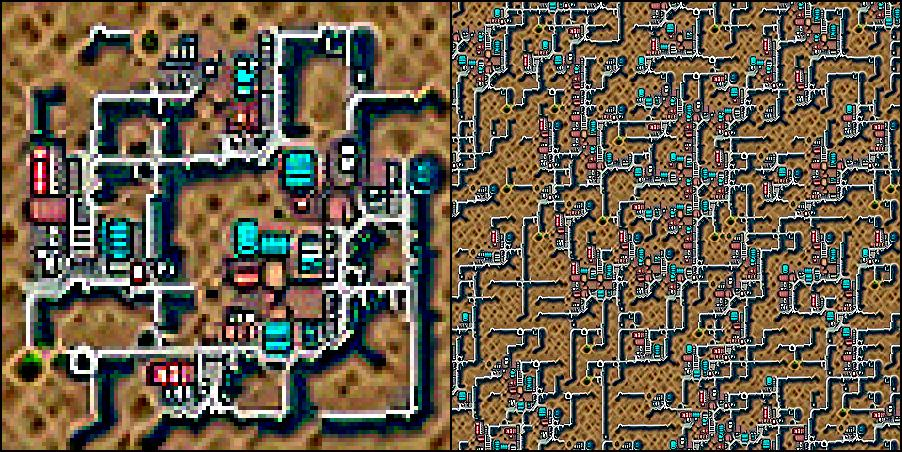

city wasteland preview

city wasteland ec 16x16px 7x7map

Image of corals:

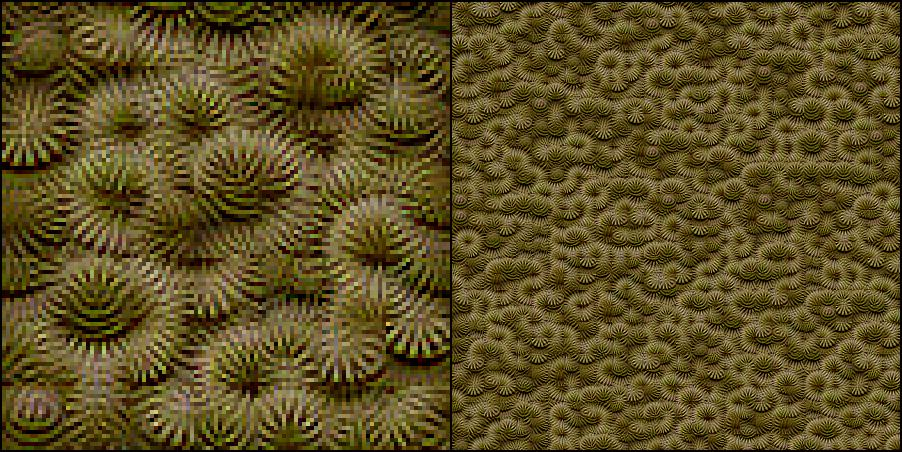

coral preview

coral ec 16x16px 7x7map

Image of a brain:

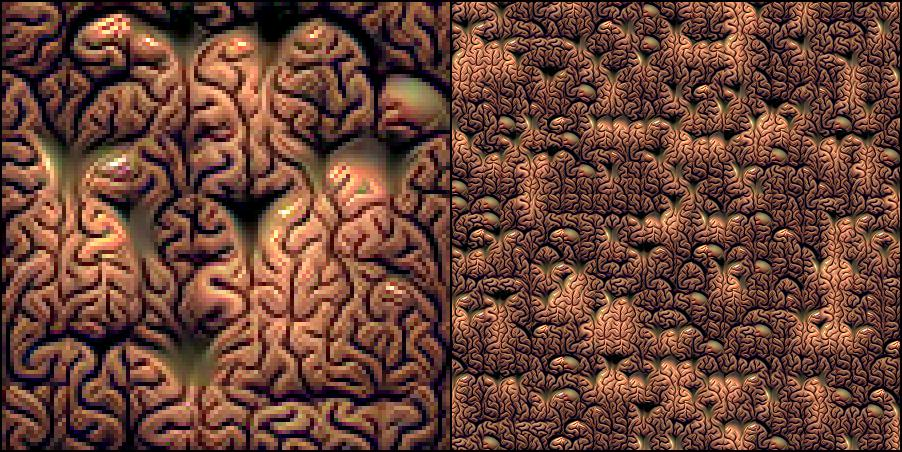

brain preview

brain ec 16x16px 7x7map

Image of Mulder and Scully from the X-Files:

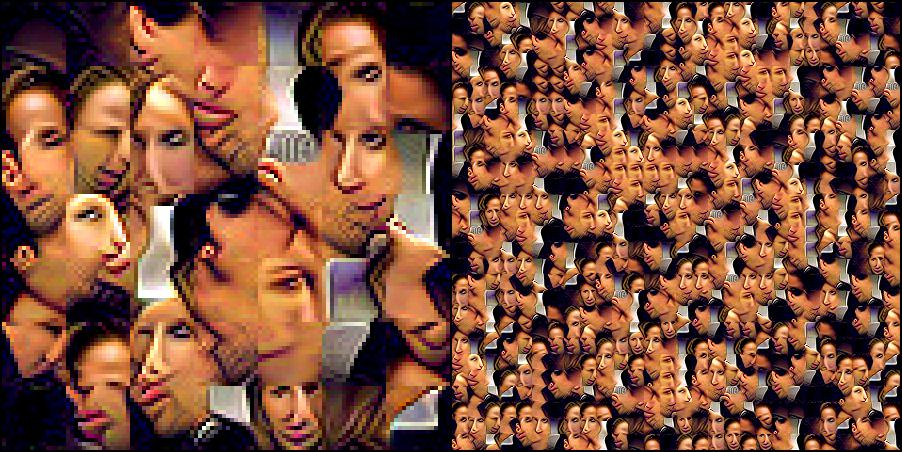

x files preview

x files ec 16x16px 7x7map

Why do they stick there tounges out? Well, the source image is a bit special. Don't know where i got this from:

gillian and david

There are images on the net that show more of Gillian Anderson's skin:

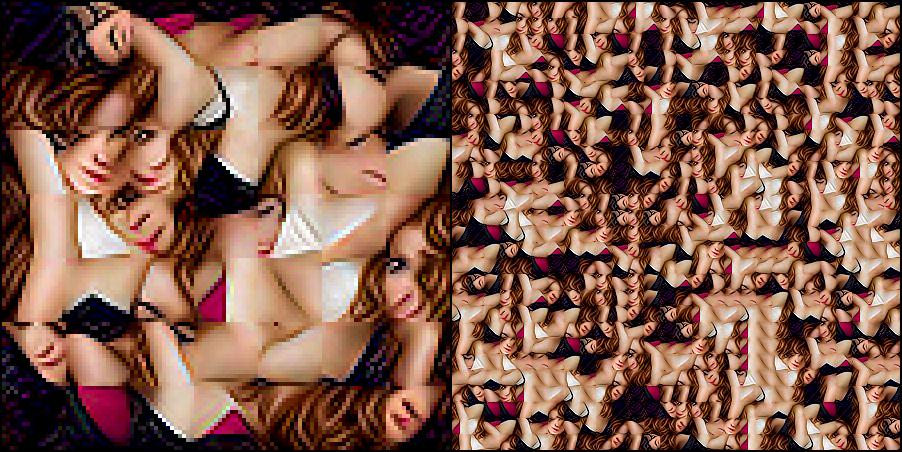

gillian preview

gillian ec 16x16px 7x7map

Police brutality can be a source, too:

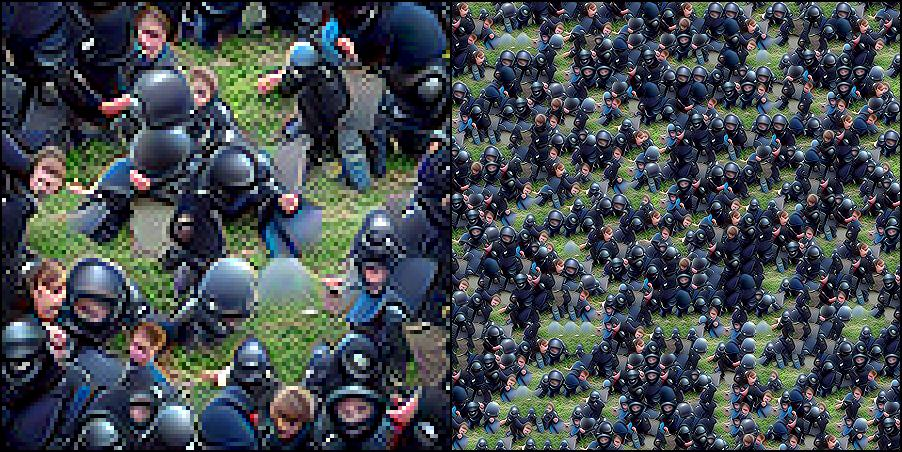

police brutality preview

police brutality ec 16x16px 7x7map

Or long dead soldiers at their duty:

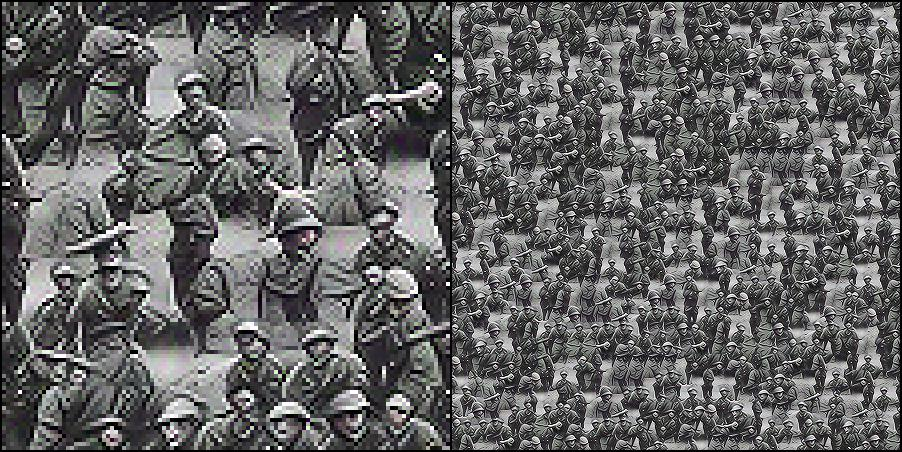

soldiers preview

soldiers ec 16x16px 7x7map

The target prompts and images can be differently weighted (by multiplying the cosine distance of the CLIP embeddings by a factor).

Below are different mixes of this target image:

photo of machine

and the prompt "cthulhu's labyrinth, pixelart".

No masking was applied and both the text prompt feature and the target image feature are applied at the same time with different weights

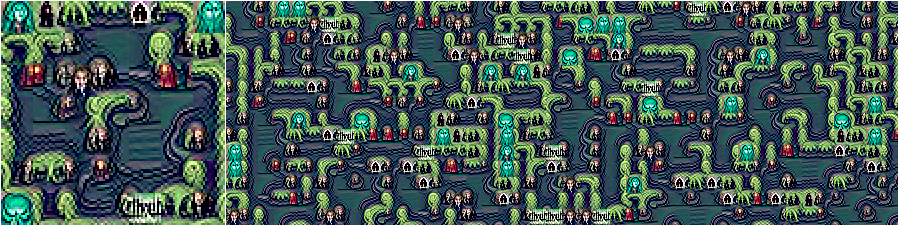

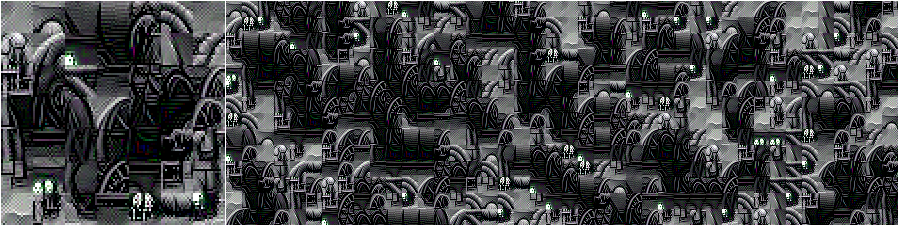

image 1.0 / prompt 0.0

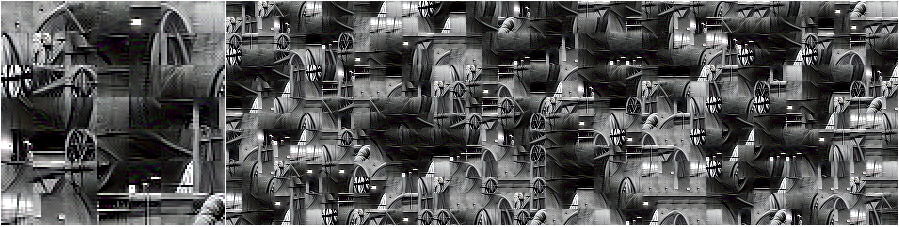

image 1_0 prompt 0_0 preview

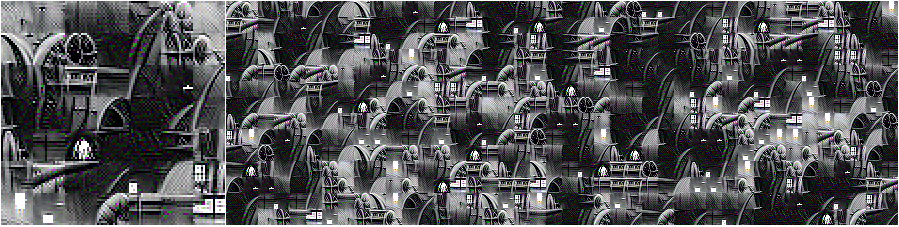

image 1.0 / prompt 0.5

image 1_0 prompt 0_5 preview

image 1.0 / prompt 1.0

image 1_0 prompt 1_0 preview

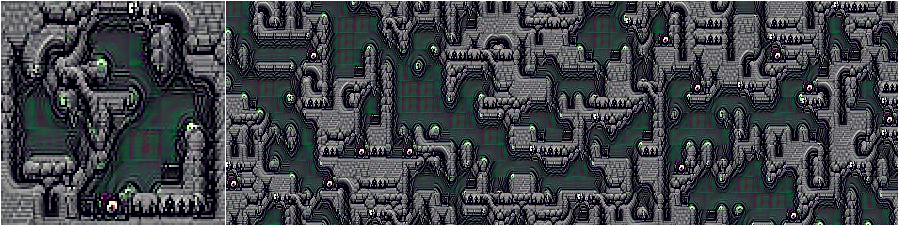

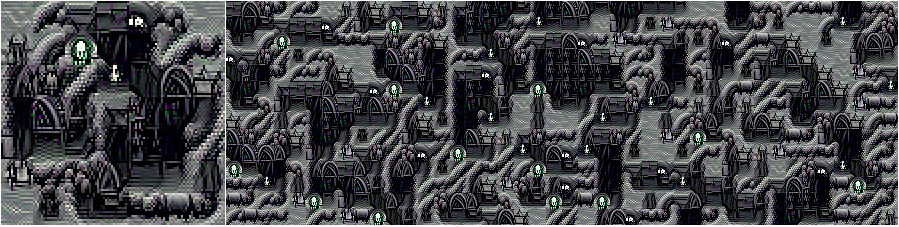

image 0.7 / prompt 1.0

image 0_7 prompt 1_0 preview

image 0.4 / prompt 1.0

image 0_4 prompt 1_0 preview

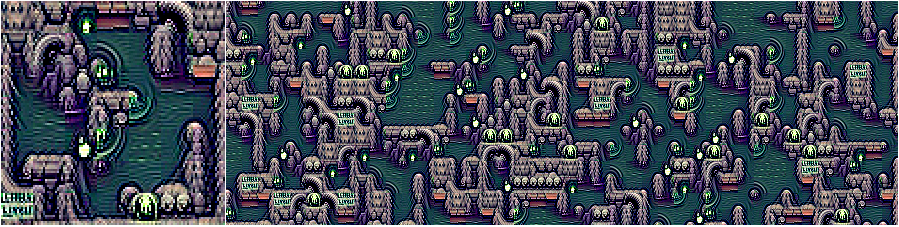

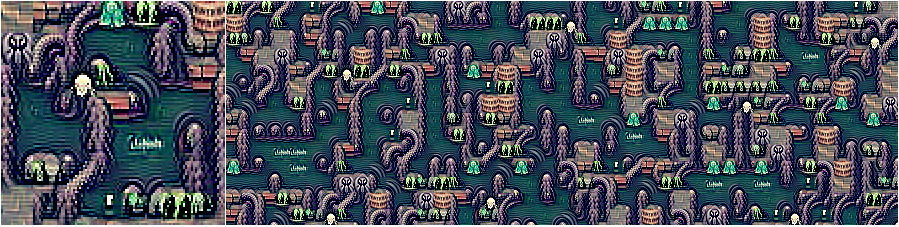

image 0.37 / prompt 1.0

image 0_37 prompt 1_0 preview

image 0.36 / prompt 1.0

image 0_36 prompt 1_0 preview

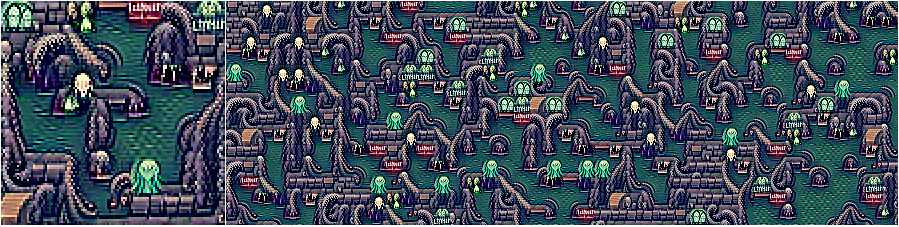

image 0.35 / prompt 1.0

image 0_35 prompt 1_0 preview

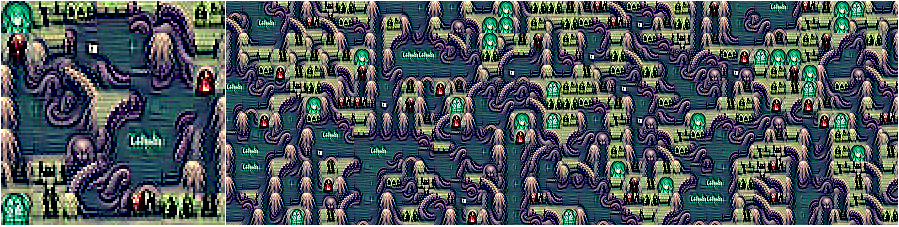

image 0.3 / prompt 1.0

image 0_3 prompt 1_0 preview

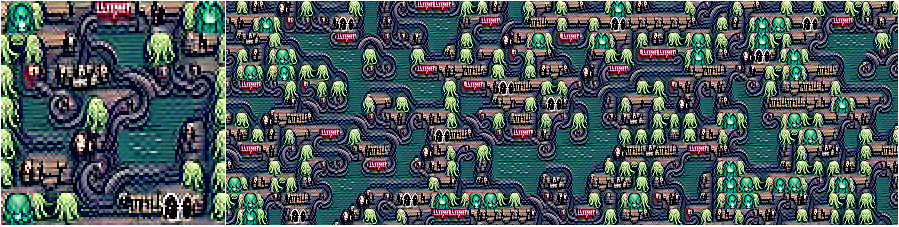

image 0.2 / prompt 1.0

image 0_2 prompt 1_0 preview

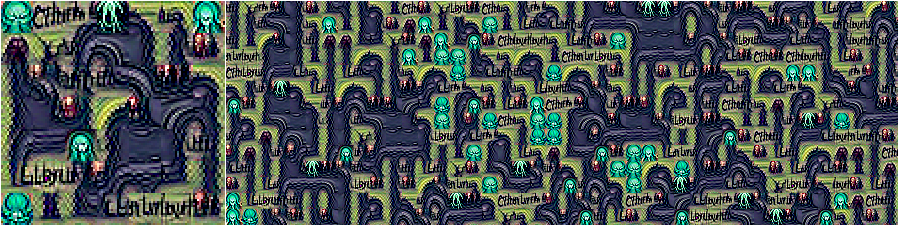

image 0.1 / prompt 1.0

image 0_1 prompt 1_0 preview

image 0.0 / prompt 1.0

image 0_0 prompt 1_0 preview

Image prompts are usually much stronger then text prompts. Using only image prompts, the tiling generally gets less seamless. I think this is because CLIP wants to reproduce a particular spatial image composition but is only seeing random tile-maps and cares less for smooth transitions of the particular tile edges but more for the target image features. While text prompts often do not imply a particular spatial composition and CLIP can care more for correct tile transitions.

Mixing the prompt "fir trees on the hillside" with this target image

mountain target

yields this quite astonishing tilest

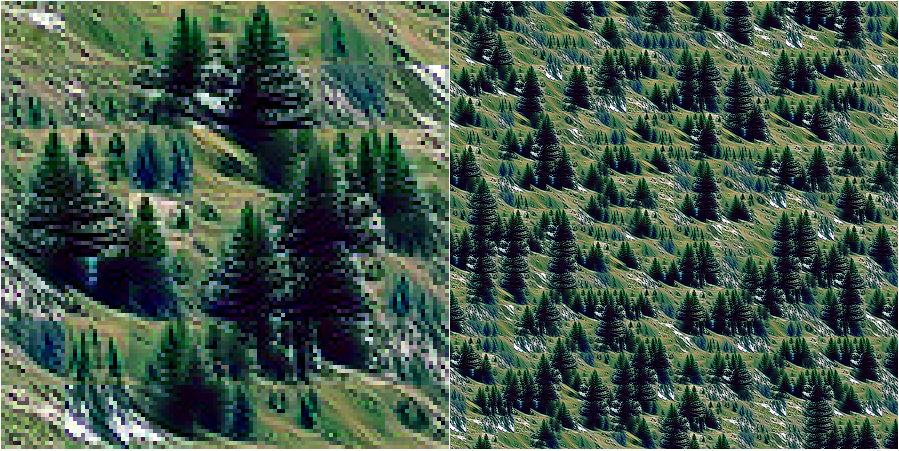

fir trees preview

fir trees ec 16x16px 7x7map

The above is created with the RMSprop optimizer and below with AdamW.

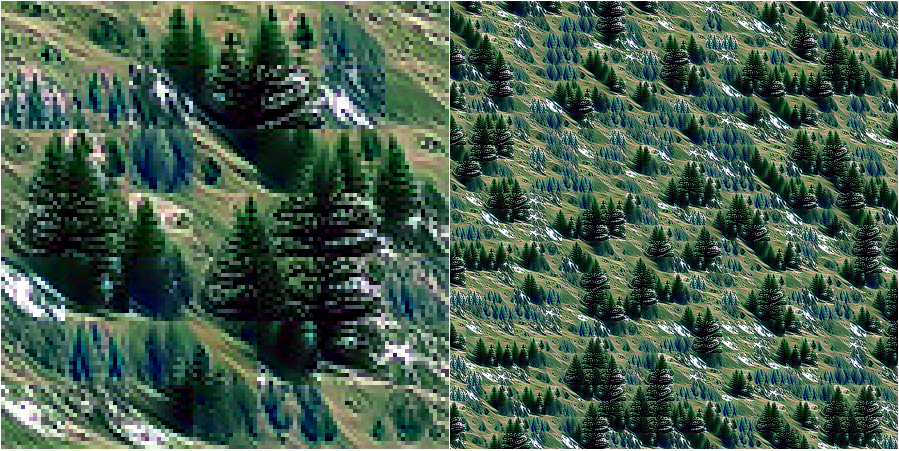

fir trees2 preview

fir trees2 ec 16x16px 7x7map

Both optimizers are fun to play with. And it's really hypnotic to watch a template gradually grow into a CLIP-generated tileset. With RMSprop in particular, CLIP, over time, shifts attention from one set of objects to the next and it's hard to resist watching the process for minutes and minutes..

I did all the graphics with "CLIPig 2", found here. It's a Qt application, no scripting or coding required, but it's yet buggy and without documentation.

Integrating something like this as a GIMP plugin or directly into the Tiled map editor would be really cool.
